CircuitMate

Manufacturer Preview Development Phase

Technical Specifications

Comprehensive product specifications for manufacturing partners

Hardware Specifications

Processor 32-bit RISC-V Single-Core

Clock Speed Up to 160 MHz

CoreMark Score 483.27 CoreMark (3.02 CoreMark/MHz)

Memory 384 KB ROM, 400 KB SRAM

Cache 16 KB

Dimensions 44.325 x 44.325 x 6.10 mm

Connectivity & I/O

SnapLink System 8 Magnetic Connectors

SnapLink Accessories Battery Packs, Sensors, OLED Displays

Wireless WiFi 802.11n, Bluetooth 5.0

USB USB-C (Power & Data)

GPIO Pins 16 Digital, 8 Analog

Built-in Display 1.3" OLED (128x64)

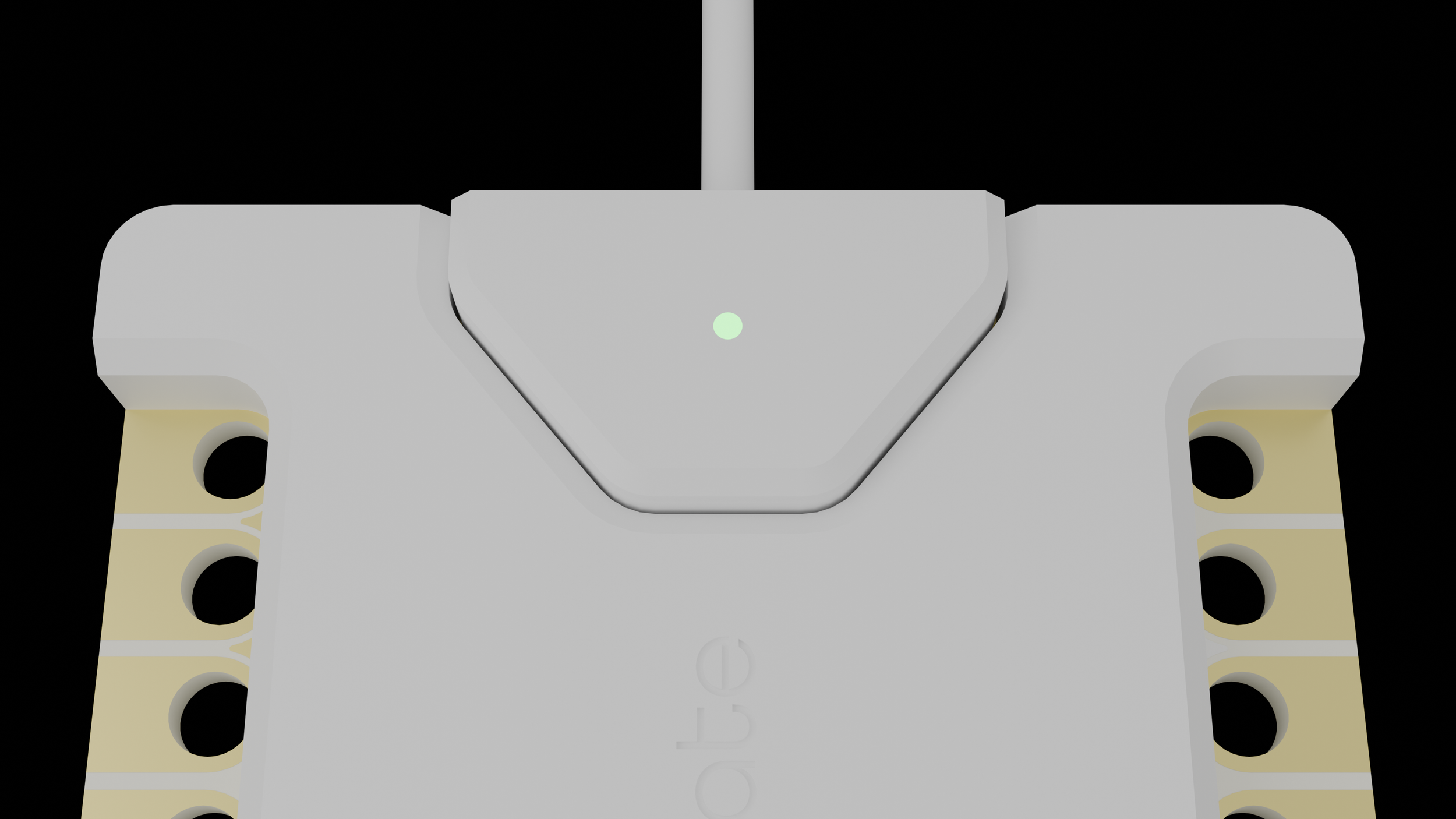

SnapLink Technology

Custom magnetic connector system that enables seamless connection of accessories like battery packs, sensors, OLED displays, and more. Simply snap modules into place - no complex wiring required.

Mobile Integration

iOS app provides wireless control and programming capabilities. Real-time monitoring and remote operation.

Development Environment

CircuitCraft IDE and BlockCraft visual programming. Supports C++, Python, and block-based coding.

Manufacturing Requirements

Key considerations for production partners

Production Specifications

PCB Assembly with SMT components
Injection molded ABS housing
Magnetic connector integration
Quality control testing for each unit
Firmware programming and testing
Packaging and documentation

Quality Standards

ISO 9001 certified manufacturing
RoHS and REACH compliance
CE and FCC certification
100% functional testing
Environmental stress testing
Reliability testing (MTBF >50,000 hours)

Manufacturer Inquiries

For detailed manufacturing specifications, pricing, and partnership opportunities, please contact our development team.
